Package utilities

source

satvap


def satvap(
    tc:float, # Temperature (degC)
)->tuple: # esat: Saturation vapor pressure (Pa), desat: d(esat)/dT (Pa/K).

Compute saturation vapor pressure (esat) and the rate of change in saturation vapor pressure with respect to temperature (dsat = d(esat)/dT).

Polynomial approximations are from: Flatau et al. (1992) Polynomial fits to saturation vapor pressure. Journal of Applied Meteorology 31:1507-1513. Input temperature is Celsius.

Parameters:

  • tc: Temperature (degC).

Returns:

  • esat: Saturation vapor pressure (Pa)
  • desat: d(esat)/dT (Pa/K).

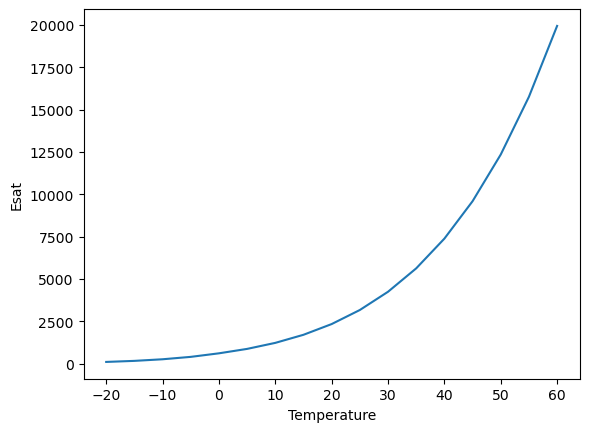

Example satvap():

import matplotlib.pyplot as plt
saturation_vapor_pressure_esat = []
saturation_vapor_pressure_dsat = []
temperature_range = []


for each_temperature in range(-20, 65, 5):
    temperature_range.append(each_temperature)
    saturation_vapor_pressure_esat.append(satvap(each_temperature)[0])
    saturation_vapor_pressure_dsat.append(satvap(each_temperature)[1])


plt.xlabel("Temperature")
plt.ylabel("Esat")
plt.plot(temperature_range, saturation_vapor_pressure_esat)
plt.show()

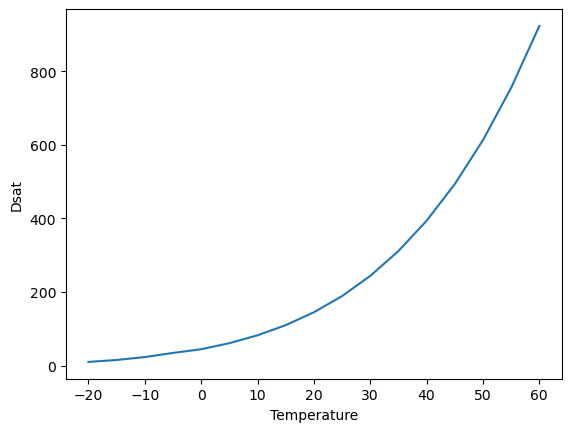

plt.xlabel("Temperature")
plt.ylabel("Dsat")
plt.plot(temperature_range, saturation_vapor_pressure_dsat)
plt.show()

source

latvap


def latvap(
    tc:float, # Temperature (degC).
    mmh2o:float, # Molecular mass of water (kg/mol).
)->float: # Latent heat of vaporization (J/mol).

Latent heat of vaporization (J/mol) at temperature tc (degC).

Parameters:

  • tc: Temperature (degC).
  • mmh2o: Molecular mass of water (kg/mol).

Returns:

  • val: Latent heat of vaporization (J/mol).

source

calc_radiative_forcing_qa


def calc_radiative_forcing_qa(
    solar_down, # Total downward solar radiation incident on the leaf (W/m2).
Split equally between visible and near-infrared wavebands.
    leaf, # Leaf object with the following attributes:
- rho : list[float]
    Leaf reflectance for visible and near-infrared wavebands (-).
- tau : list[float]
    Leaf transmittance for visible and near-infrared wavebands (-).
- emiss : float
    Leaf emissivity (-).
    ground_albedo, # Ground surface albedo for visible and near-infrared wavebands (-).
    ground_lw, # Upward longwave radiation emitted by the ground surface (W/m2).
    irsky, # Downward atmospheric longwave radiation (W/m2).
): # Leaf radiative forcing (W/m2 leaf). Sum of absorbed solar radiation
across both wavebands and absorbed longwave radiation from sky and
ground.

Calculate leaf radiative forcing Qa (Equation 10.3).

Compute the total radiation absorbed by a leaf from solar (visible and near-infrared wavebands) and longwave (sky and ground) sources. Solar radiation is split equally between visible and near-infrared wavebands, and includes both direct and ground-reflected components.

Implements Equation (10.3) from Bonan (2019):

Qa = Σ_Λ S↓_Λ (1 + ρg_Λ)(1 - ρℓ_Λ - τℓ_Λ) + εℓ (L↓sky + L↑g)

where Λ denotes visible and near-infrared wavebands, ρg is ground albedo, ρℓ and τℓ are leaf reflectance and transmittance, and εℓ is leaf emissivity. The factor (1 + ρg) accounts for solar radiation striking the upper leaf surface directly plus radiation reflected from the ground striking the lower surface.

Parameters:

  • solar_down: Total downward solar radiation incident on the leaf (W/m2). Split equally between visible and near-infrared wavebands.

  • leaf: Leaf object with the following attributes:

    • rho: Leaf reflectance for visible and near-infrared wavebands (-).
    • tau: Leaf transmittance for visible and near-infrared wavebands (-).
    • emiss: Leaf emissivity (-).

  • ground_albedo: Ground surface albedo for visible and near-infrared wavebands (-).

  • ground_lw: Upward longwave radiation emitted by the ground surface (W/m2).

  • irsky: Downward atmospheric longwave radiation (W/m2).

Returns:

  • qa: Leaf radiative forcing (W/m2 leaf). Sum of absorbed solar radiation across both wavebands and absorbed longwave radiation from sky and ground.

source

arrhenius_function


def arrhenius_function(
    tl, # Leaf Temperature (K)
    ha, # Activation Energy (J mol–1)
):

Temperature response function used in leaf_photosynthesis()

Follows Eq 11.34:

f(t) = exp((deltaHa/298.15*r) * (1-298.15/Tl))

where deltaHa is the activation energy (J mol–1), Tl is the leaf temperature and r is the Universal gas constant (J/K/mol)

Parameters:

  • tl: Leaf Temperature (K)
  • ha: Activation Energy (deltaHa). This parameter controls how sensible each enzyme is to warming. A high deltaHa means the enzyme’s speed changes dramatically with temperature; a low deltaHa means it’s more stable.

At 25°C (298.15 K), the function returns exactly 1.0, that’s the reference point. Above 25°C, it returns values greater than 1 (faster). Below 25°C, values less than 1 (slower).

Example arrhenious_function()

for each_temperature in [10, 20, 30, 40]:
    print(each_temperature)
    print(arrhenius_function(tl=each_temperature, ha=9430.0))
10
2.4874007435848738e-48
20
1.0565873380195099e-23
30
1.7111652386662447e-15
40
2.1776356758106435e-11

source

inhibition_function


def inhibition_function(
    tl, # Leaf Temperature (K)
    hd, # Deactivation Energy (J mol–1)
    se, # Entropy term (MISSING UNITS)
    fc, # Overheat Protection (MISSING UNITS)
):

High-temperature inhibition function used in leaf_photosysthesis(). This function represents thermal breakdown of biochemical processes.

Follows Eq 11.36:

        1 + exp[(298.15·ΔS - ΔHd) / (298.15·R)]

fH(Tl) = ────────────────────────────────────────── 1 + exp[(ΔS·Tl - ΔHd) / (R·Tl)]

where deltaHd is the deactivation energy (J mol-1), Tl is the leaf temperature, deltaS is an entropy term and r is the Universal gas constant (J/K/mol).

The combination arrhenius_function() * inhibition_function() creates the peaked response shown in the textbook’s Figure 11.3 — activity rises, peaks at an optimum, then falls.

Parameters:

  • tl : Leaf Temperature (K)
  • hd : Deactivation Energy (J mol–1)
  • se : Entropy term (MISSING UNITS)
  • fc : Overheat Protection (MISSING UNITS)

source

brent_root


def brent_root(
    func, # Function with signature func(physcon, atmos, leaf, flux, x) -> (flux, fx)
    physcon:PhysCon, atmos:Atmos, leaf:Leaf, flux:Flux, xa:float, xb:float, tol:float, # Tolerance for the root.
)->tuple: # Updated flux structure.

Brent’s root finder

Use Brent’s method to find the root of a function, which is known to exist between xa and xb. The root is updated until its accuracy is tol. func is the name of the function to solve. The variable root is returned as the root of the function. The function being evaluated has the definition statement:

function [flux, fx] = func (physcon, atmos, leaf, flux, x)

The function func is exaluated at x and the returned value is fx. It uses variables in the physcon, atmos, leaf, and flux structures. These are passed in as input arguments. It also calculates values for variables in the flux structure so this must be returned in the function call as an output argument.

Input: bracket [a, b] where f(a) and f(b) have opposite signs
                    │
                    ▼
        ┌───────────────────────────┐
        │ Verify bracket:           │
        │ f(a) · f(b) < 0 ?         │
        │ If not → ERROR            │
        └───────────────────────────┘
                    │
                    ▼
        ┌───────────────────────────┐
        │ Initialize:               │
        │ c = b, fc = fb            │
        │ b = best guess            │
        └───────────────────────────┘
                    │
                    ▼
        ┌───────────────────────────┐
        │       Main loop           │
        │                           │
        │  1 Ensure b,c bracket root│
        │  2 Keep b as best guess   │
        │  3 Converged? → STOP      │
        │                           │
        │  4 Can we interpolate?    │
        │     ├─ YES: secant or     │
        │     │  inverse quadratic  │
        │     │    ├─ Step OK? USE  │
        │     │    └─ Step bad?     │
        │     │       BISECT        │
        │     └─ NO: BISECT         │
        │                           │
        │  5 Take step: b = b + d   │
        │  6 Evaluate f(b)          │
        │  7 Loop back to 1         │
        └───────────────────────────┘
                    │
                    ▼
            Return b as root

source

time_to_float


def time_to_float(
    time_str
):

source

diurnal_par


def diurnal_par(
    hour, # Hour of day (0-24). E.g., 6.5 = 6:30 AM.
    par_max:float=800.0, # Peak shortwave radiation at solar noon (W/m2).
    sunrise:float=6.0, sunset:float=20.0
):

Shortwave radiation following a sinusoidal daytime curve.

PAR = par_max * sin(π * (hour - sunrise) / daylength)

Returns total shortwave in W/m² (split 50/50 VIS/NIR later). At night (before sunrise or after sunset): returns 0.

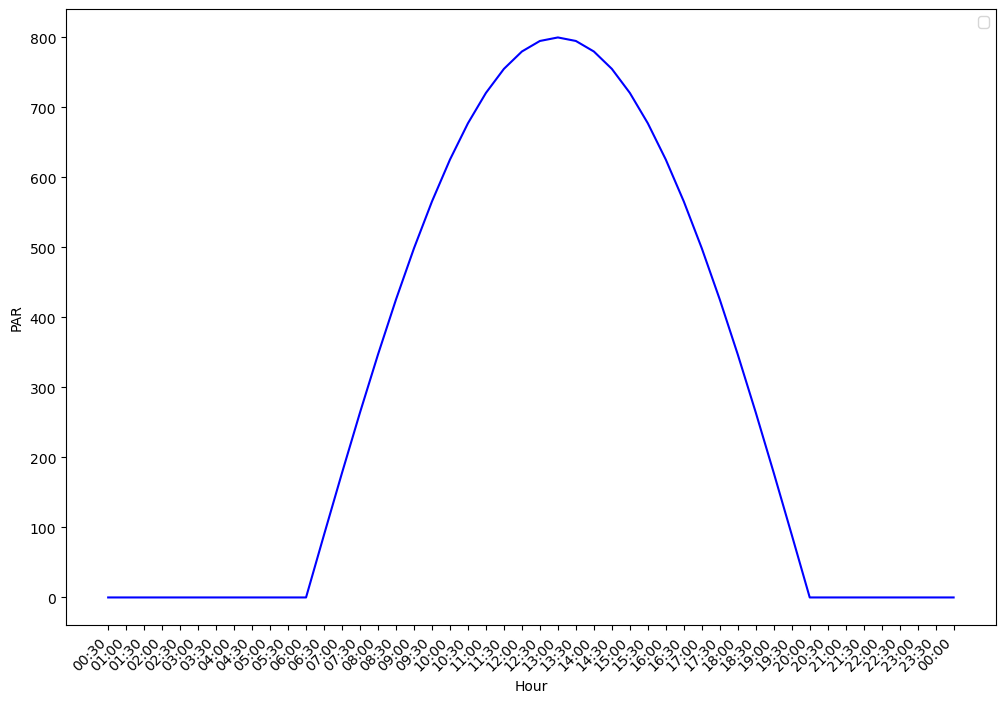

Example diurnal_par()

from datetime import datetime, timedelta
import matplotlib.pyplot as plt
# Initialize start time (00:00)
start_time = datetime.strptime("00:00", "%H:%M")

# Create list of times every 30 minutes
current_time = start_time

# Create storing objects
time = []
par = []

 # 24 hours × 2 half-hour intervals
for _ in range(48):

    # Generate interval
    current_time += timedelta(minutes=30)
    time.append(current_time.strftime("%H:%M"))

    # Calulate PAR
    par.append(diurnal_par(hour=time_to_float(current_time.strftime("%H:%M"))))
# Plot
plt.figure(figsize=(12, 8))
plt.plot(time, par, color='blue')
plt.xticks(rotation=45, ha='right')
plt.legend()
plt.xlabel('Hour')
plt.ylabel('PAR')
plt.show()
/var/folders/xw/8jb87np92s1_mncrtmpvkzb80000gn/T/ipykernel_5902/1713457667.py:5: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  plt.legend()

source

diurnal_temperature


def diurnal_temperature(
    hour, t_mean:float=25.0, t_amp:float=7.0, t_min_hour:float=5.5
):

Air temperature following a sinusoidal curve with minimum at dawn.

Tair = t_mean + t_amp * sin(2π * (hour - t_min_hour) / 24 - π/2)

This gives: Minimum at t_min_hour (dawn, ~5:30) Maximum at t_min_hour + 6 = 11:30… but real Tmax lags to ~14:00.

To get the ~2-hour lag, we shift the phase: Tair = t_mean + t_amp * sin(2π * (hour - t_max_hour) / 24) where t_max_hour = 14.0 (2 PM), so minimum is at 14 - 12 = 2 AM… That’s too early for Tmin.

Better approach: use an asymmetric function. Simpler: just use a sine with Tmax at 14:00. Tair = t_mean + t_amp * sin(2π * (hour - 8.0) / 24) This gives Tmax at 14:00 and Tmin at 2:00 AM. At dawn (6:00): T = 25 + 7sin(2π(-2)/24) = 25 + 7sin(-π/6) = 25 - 3.5 = 21.5°C At noon (12:00): T = 25 + 7sin(2π4/24) = 25 + 7sin(π/3) = 25 + 6.06 = 31.1°C At 14:00: T = 25 + 7sin(2π6/24) = 25 + 7sin(π/2) = 32°C ← max At 20:00: T = 25 + 7sin(2π*12/24) = 25 + 0 = 25°C

That looks realistic!

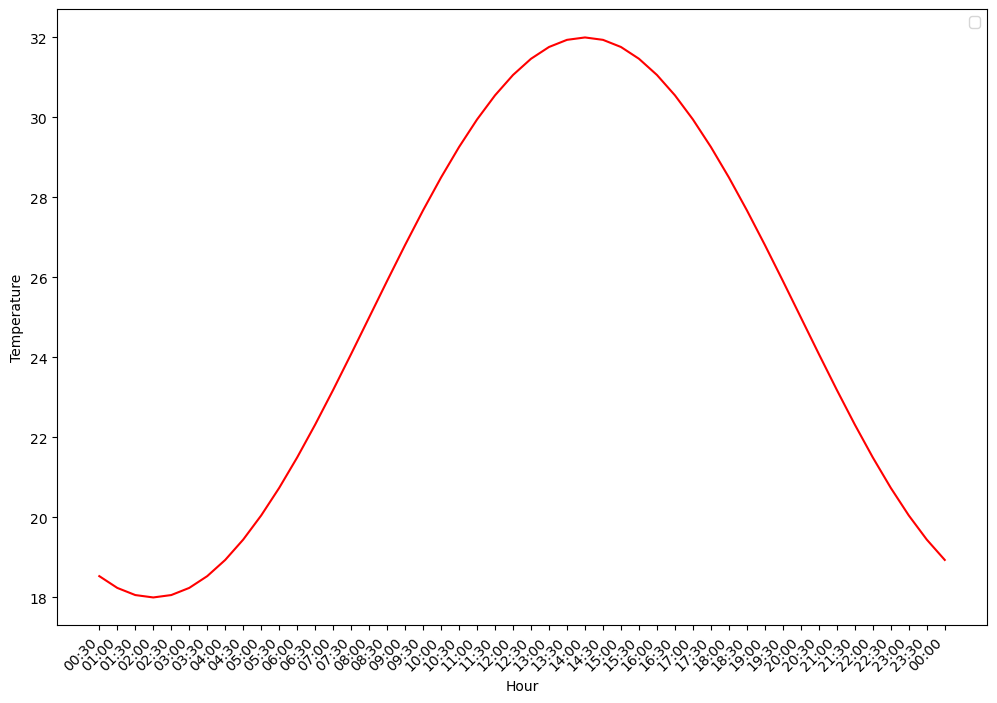

Example diurnal_temperature()

# Initialize start time (00:00)
start_time = datetime.strptime("00:00", "%H:%M")

# Create list of times every 30 minutes
current_time = start_time

# Create storing objects
time = []
temp = []

 # 24 hours × 2 half-hour intervals
for _ in range(48):

    # Generate interval
    current_time += timedelta(minutes=30)
    time.append(current_time.strftime("%H:%M"))

    # Calulate PAR
    temp.append(diurnal_temperature(hour=time_to_float(current_time.strftime("%H:%M"))))
# Plot
plt.figure(figsize=(12, 8))
plt.plot(time, temp, color='red')
plt.xticks(rotation=45, ha='right')
plt.legend()
plt.xlabel('Hour')
plt.ylabel('Temperature')
plt.show()
/var/folders/xw/8jb87np92s1_mncrtmpvkzb80000gn/T/ipykernel_5902/3388095162.py:5: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  plt.legend()

source

diurnal_relhum


def diurnal_relhum(
    hour, rh_mean:float=65.0, rh_amp:float=20.0
):

Relative humidity, anti-correlated with temperature.

RH is highest at dawn and lowest in the afternoon. We use the OPPOSITE phase of temperature: RH = rh_mean - rh_amp * sin(2π * (hour - 8) / 24)

This gives: Maximum at 2:00 AM: 65 + 20 = 85% At dawn (6:00): 65 + 10 = 75% At noon (12:00): 65 - 17.3 = 47.7% Minimum at 14:00: 65 - 20 = 45% At sunset (20:00): 65%

The negative sign flips the phase relative to temperature.

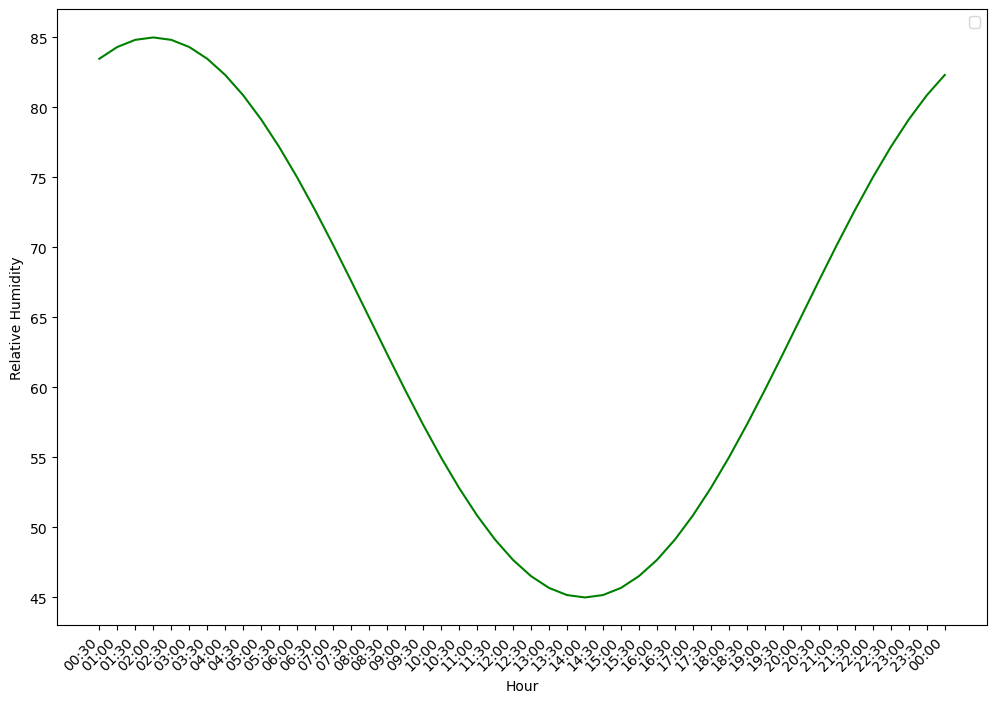

Example diurnal_relhum()

# Initialize start time (00:00)
start_time = datetime.strptime("00:00", "%H:%M")

# Create list of times every 30 minutes
current_time = start_time

# Create storing objects
time = []
relative_humidity = []

 # 24 hours × 2 half-hour intervals
for _ in range(48):

    # Generate interval
    current_time += timedelta(minutes=30)
    time.append(current_time.strftime("%H:%M"))

    # Calulate PAR
    relative_humidity.append(diurnal_relhum(hour=time_to_float(current_time.strftime("%H:%M"))))
# Plot
plt.figure(figsize=(12, 8))
plt.plot(time, relative_humidity, color='Green')
plt.xticks(rotation=45, ha='right')
plt.legend()
plt.xlabel('Hour')
plt.ylabel('Relative Humidity')
plt.show()
/var/folders/xw/8jb87np92s1_mncrtmpvkzb80000gn/T/ipykernel_5902/1613661216.py:5: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  plt.legend()
